●Used in switching power supply

●High Ripple Current High Temperature, extremely Long Life, 130C 3000 hours or 105C 10000 hours

●Specially designed for electronic ballast and energy-save lamp

Key words:

Classification:

Telephone:

Product Details

Items

Characteristcs

Operating temperature range

-40℃ ~ 130 ℃

Rated working voltage range

160~450V.DC

Capacitance T olerance

(20℃,120Hz)

±20%

Leakage current

Rated Voltage(V)	160~400	450
Leakage current	0.02CV + 10μ A(at 20t,after2 minutes)	0.03CV + 10μ A(at 20℃,after 2 minutes)

Dissipation Factor (20 ℃,120Hz )

Rated Voltage(V)	160	200	250	350	400	450
tanδ	0.08	0.08	0.08	0.08	0.08	0.12

Load life ( + 130 ℃ or 105 ℃)

After application of the rated voltage at 130 VII 3000 hours or 105 VII 10000 hours,the capacitors shall meet the Require below

Time	130 ℃ 3000hoursor 105 ℃ 10000hours
Leakage current	Not more than the specified value
Capacitance change	Within ± 30% of the initial value
Dissipation Factor	Not more than 300% of the specified value

Shelflife (105°C)

After leaving capacitors under no load at 105 ℃ for 1000 hours, capacitors shall meet specified value for load life characteristics listed above.

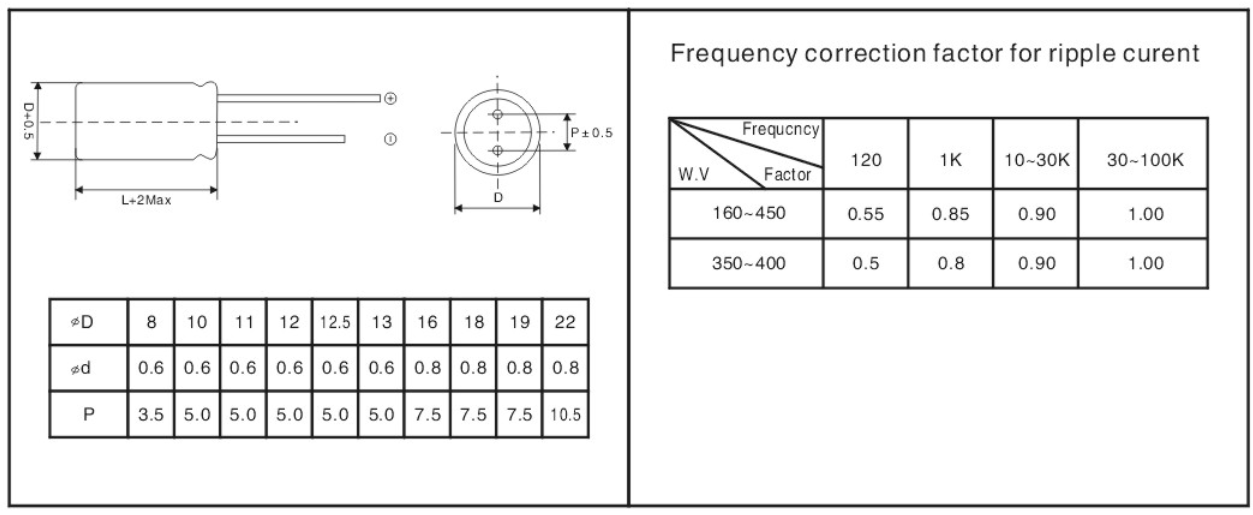

DIMENSIONS MULTIPLIER FOR RIPPL E CURRENT

ST ANDARD RATINGS

Case Size: DXL(mm) Ripple Current: (mA, 1 05C/100KHz)
