XG

●Specially designed for energy- save lamp

●High Ripple Current High Temperature,extremely Long Life

●130°C 2000 hours or 105C 5000 hours

Key words:

Aluminum electrolytic capacitors

Supercapacitor

Bolt Capacitor

Classification:

Terminal self-supporting

Telephone:

86-13825125687

Contact Us
Sample application

Product Details

SPECIFICATIONS

Items Characteristcs
Operating temperature range -40 to 130 °C
Rated working voltage range 160~450V.DC
Capacitance T olerance(20℃,120Hz) -20~20%
Leakage current Rated Voltage(V) 160~400 450
Leakage current 0.02CV + 10μ A(at 20cafter 2 minutes) 0.03CV + 10μ A (at 20℃,after 2 minutes)
Dissipation Factor (20*0,120Hz ) Rated Voltage(V) 160 200 250 350 400 450
tanδ 0.08 0.08 0.08 0.08 0.08 0.1
Load life ( 130 ℃ or 105 ℃) After application of the rated voltage at 130 ℃ 2000 hours or 105 ℃ 5000 hours,the capacitors shall meet the Require below
Time 130 ℃ 2000hours or 105 ℃ 5000hours
Leakage current Not more than the specified value
Capacitance change Within ± 30% of the initial value
Dissipation Factor Not more than 300% of the specified value
She lflife ( 105 ℃) After leaving capacitors under no load at 105 ℃ for 1000 hours, capacitors shall meet specified value for load life characteristics listed above.

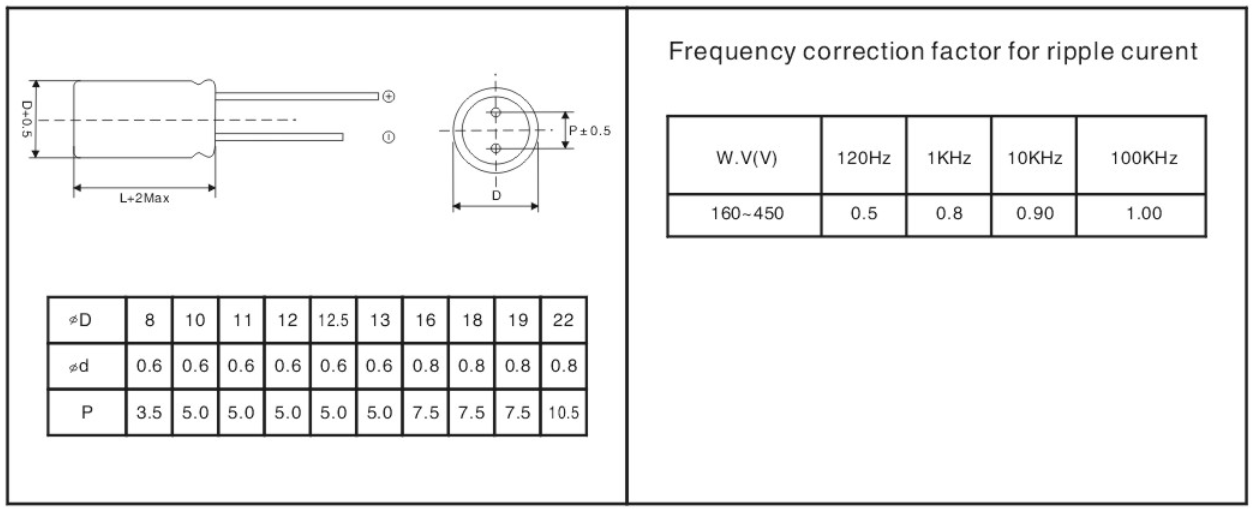

 DIMENSIONS                                                                      MULTIPLIER FOR RIPPL .E CURRENT

ST ANDARD RATINGS

Case Size: DXL(mm)              Ripple Current: (mA, 105C/1 00KHz)

WV(v) Cap (uF) 160 V   200V   250V   350V   400V   450V
  size Ripple size Ripple size Ripple size Ripple size Ripple size Ripple
1           60 8X12 64 10X12 72 8X16 80
1.5           68 10X12 70 10X12 84 10X16 88
1.8           72 10X16 78 10X16 90 10X16 92
2.2         8x12 80 10X16 88 10X16 92 10X16 96
2.8     8x12 80 10x12 90 10X16 96 10X16 100 10X16 100
3.3 8x12 88 8X12 92 10X12 100 10X17 106 10X17 110 10X17 110
4.7 10x12 96 10x12 100 10x16 110 10X20 132 10X20 130 10X20 130
5.6 8x16 102 8x16 108 10x16 110 12X20 152 12X20 140 12.5X20 140
6.8 8X16 110 8X16 118 10x16 120 12X20 220 12X20 220 12.5X20 150
8.2 10x16 120 10x16 125 10X16 130 12.5X20 240 12.5X20 260 12.5X20 280
10 10x16 250 10x17 250 10X16 10X20 280 12.5X20 280 12.5X20 280 12.5X20 320
15 10x16 420 10x20 420 12X20 450 13X25 300 13X25 320 13X25 420
22 10x20 500 12X20 500 12.5X20 600 16X25 350 16X25 430 16X30 560
33 12.5X20 500 12.5X20 600 13X25 600 16X30 500 16X30 640 16X35 700
47 13X20 660 13X25 660 16X25 720 16X35 660 18X35 840 19X35 880
68 16X25 760 16X25 760 16X30 920 19X35 850 19X35 1000
100 16X25 1120 16X35 1120 18X30 1200
150 18X30 1360 18X35 1360 22X35 1500
220 19X35 1400 22X35 1700
