LH Series

  • Endurance with ripple current: 105C 2000 hours
  • Non solvent- -proof type

Key words:

Aluminum electrolytic capacitors

Supercapacitor

Bolt Capacitor

Classification:

Terminal self-supporting

Telephone:

86-13825125687

Contact Us
Sample application

Product Details

Items Characteristics
Category Temperature Range -40 to  105 ℃(6.3 to 10OVdc) -25 to  105 ℃(160 to 450Vdc)
Rated Voltage Range 6.3 to 450Vde
Capacitance Tolerance

±20%(M)

(at20 ℃),120Hz)
Leakage Current

l=0.02CV or 3mA, whichever is smaller. Where, I: Max. leakage current (μ A), C: Npminal capacitance(μF). V: Rated voltage (V)

(at 20 t after 5 Miutes)
jissipanon Racor ( tanδ）

Hated voltage

(vdc)

 6.3V 10V 16V 25V 35V 50V 63V 80V 100 V 160 to 250V 315 to 400V 450V
tanδ (Max.) 0.6 0.6 0.4 0.35 0.3 0.25 0.2 0.15 0.15 0.15 0.15 0.15

*:0.15 forΦD=35mm

(at20℃120Hz)



Low Temperature Characteristics （Max.lmpedance Ratio）

 Rated voltage （Vdc） 6.3V 10V 16V 25V 35V 50V 63V 80V 100 V 160 to 250V 315 to 400V 450V （at 120Hz）

Z(-25℃)

Z( 20℃)

 4 4 4 3 3 2 2 2 2 4 4 8

Z(-40℃）

Z( 20℃）

 15 15 15 10 8 6 6 5 5 1 — 1
0Endurance The fllowing specifications shall be satified when the capacitors are restored to20℃ after subjected to DC votage with the ratedripple current is applied for 2000℃ hours at 105℃.
Capacitance change ≦± 20% of the initial value
D.F (tanδ) ≦ 200% of the initial specified value
Leakage current ≦The initial specified value
Shalt Life The fllowing speifications shall be satisfied when the capacitors are restored to20°C atter exposing them for 1000 hours at 105℃ witheut voltage applied.
Capacitance change ≦ ±20% of the initial value
D.F (tanδ ) ≦150% of the initial specified value
Leakage current ≦The initial specified value

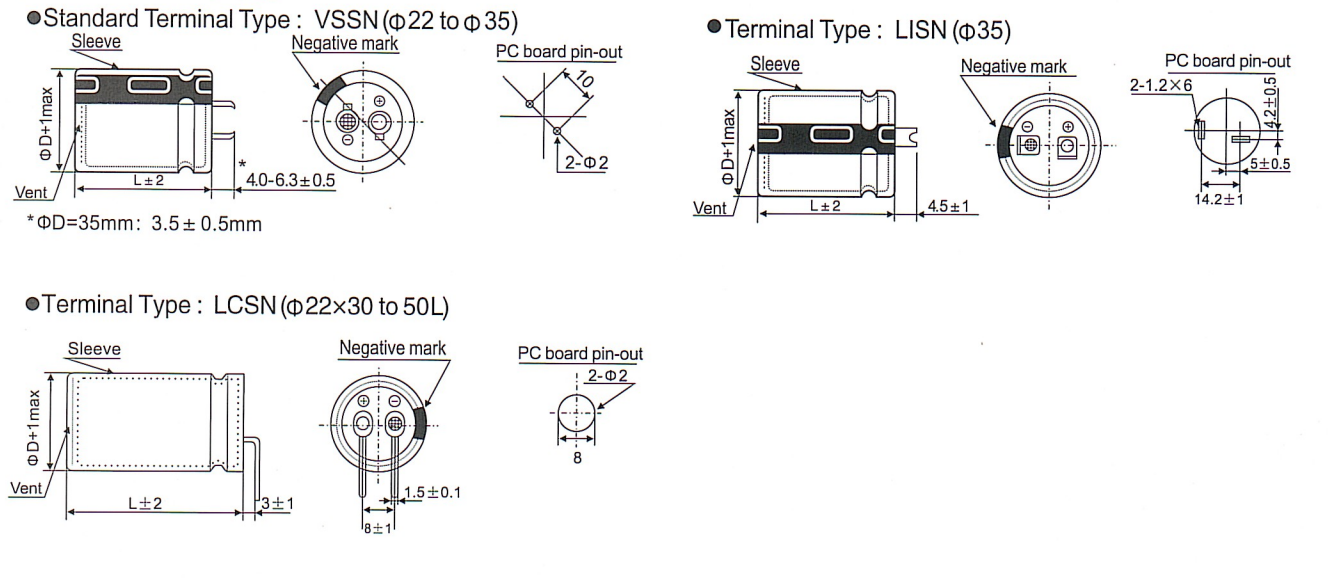

DIMENSIONS[mm]
